REISSDSPLAY RH series rental LED stage screen cabinets are expertly designed for versatility and high performance in dynamic environments. Available in two sizes — 500 x 500 mm and 500 x 1000 mm — these cabinets provide flexible solutions for various staging needs.

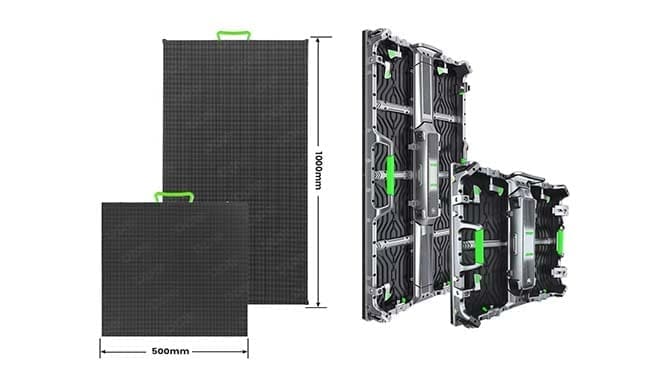

1: 500*500 and 500*1000mm cabinet design, die-cast aluminum
2: Magnesium alloy material, the lightest, only 7.5kg-13kg
3: High precision, seamless connection
4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection for modules and circuits

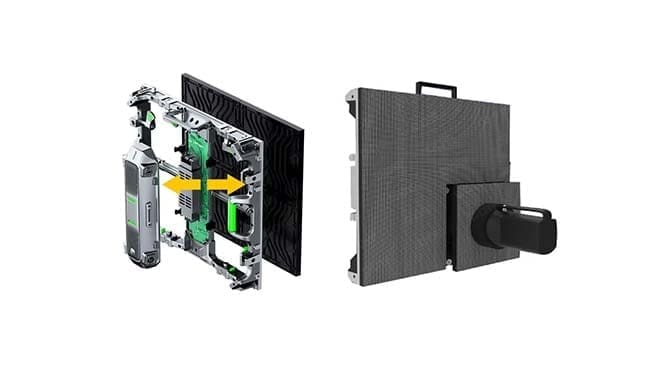

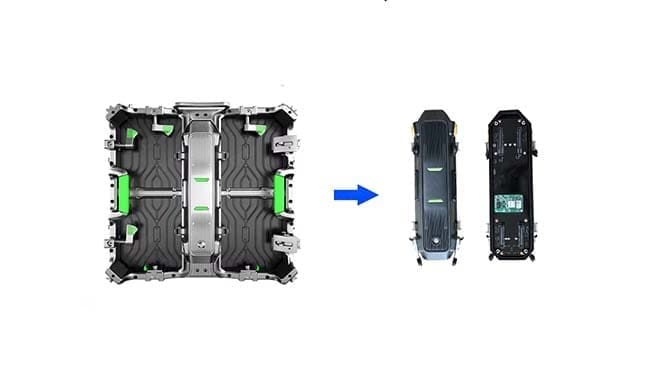

6: Front and rear maintenance functions. Fully waterproof IP65
The rapid arc splicing function in stage LED display cabinets represents a significant advancement in display technology. By facilitating quick and precise connections between panels, this feature enhances the overall efficiency and quality of LED installations, making it an invaluable tool for events and productions that demand high-performance visual solutions.
" Customer Testimonials:
Choosing High-Quality Rental LED Screens Resolution Selecting quality LED Rental Screens requires careful consideration of key factors. Our Display Rental Solutions combine reliability with outstanding performance. Through Professional Rental Technology, we ensure exceptional event experiences. Key Points: Pixel Density: More pixels per inch mean a clearer picture. Minimum Resolution: Aim for Full HD for standard […]
" Customer Testimonials:
Learn how to choose the right size and resolution for a large stage LED screen that meets your event's needs and audience viewing distance.
Application Videos
Application Videos
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 4.81 |
| Operating Environment | Indoor | Indoor | Indoor&Outdoor | Indoor&Outdoor | Indoor&Outdoor | Indoor&Outdoor |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Resolution (W×H) | 320*320 | 256*256 | 192*192 | 168*168 | 128*128 | 104*104 |
| IP Grade | Front IP55Rear IP62 | Front IP55 RearIP62 | Front IP65 Rear IP65 | Front IP65 Rear IP65 | Front IP65 Rear IP65 | Front IP65 Rear IP65 |
| Weight (kg/cabinet) | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 |
| White Balance Brightness (nit) | 800-1100 | 800-1200 | 800-5500 | 800-5500 | 800-5500 | 800-5500 |
| Horizontal / Vertical Viewing Angle | 165/165 | 160/160 | 165/165 | 160/160 | 160/160 | 160/160 |
| Power Consumption(W/㎡) | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% |
| Refresh Rate(Hz) | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
| Control System | Nova | Nova | Nova | Nova | Nova | Nova |
| Certification | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL |
Choosing High-Quality Rental LED Screens Resolution Selecting quality LED Rental Screens requires careful consideration of key factors. Our Display Rental Solutions combine reliability with outstanding performance. Through Professional Rental Technology, we ensure exceptional event experiences. Key Points: Pixel Density: More pixels per inch mean a clearer picture. Minimum Resolution: Aim for Full HD for standard […]
Learn how to choose the right size and resolution for a large stage LED screen that meets your event's needs and audience viewing distance.

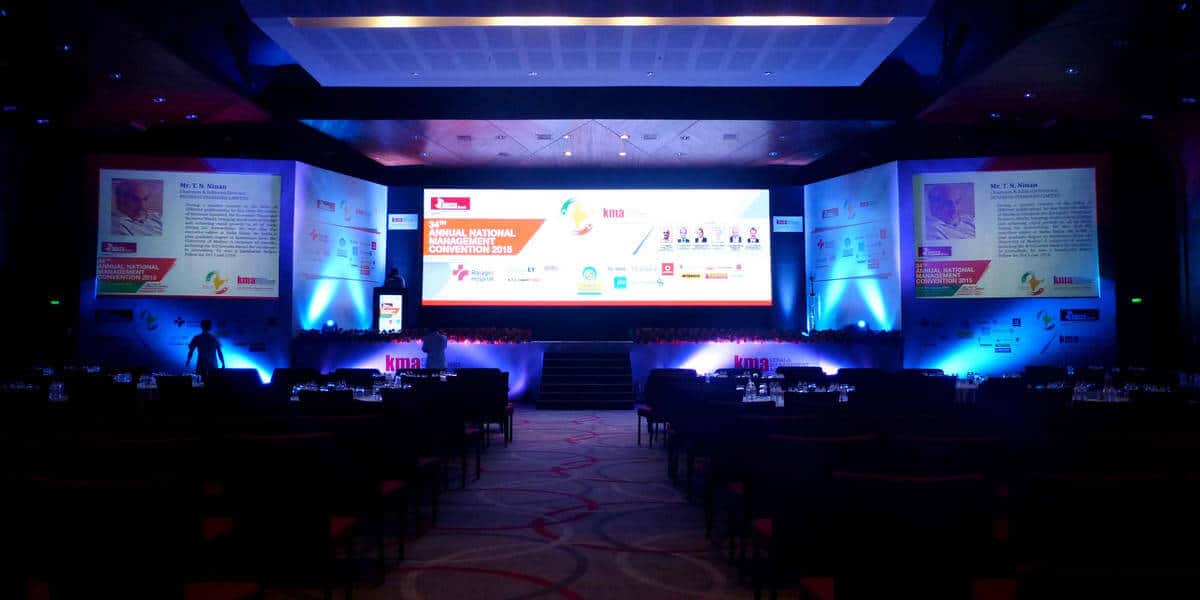

high Definition LED display [Application field]: Indoor commercial hall [Pixel pitch]: P3.91mm [Screen area]: 270 square meters [Related Products]: Indoor LED Video Wall [Project introduction]: The main advantages of p3.91 led display are high-definition LED display, high refresh rate, seamless splicing, good heat dissipation system, convenient and flexible disassembly and assembly, etc.
LED displays [Application field]: Indoor activities, professional stage [Pixel pitch]: P4.81mm [Screen area]: 350 square meters [Related products] : Stage event LED display [Project introduction]: LED Displays for indoor all-weather display, with light and thin structure, high-definition and soft display effect. The aluminum substrate heat dissipation structure makes the product light to thin to dense; […]
